Bus Bar Insulating Shrouds - BUSBOOT POLYOLEFIN

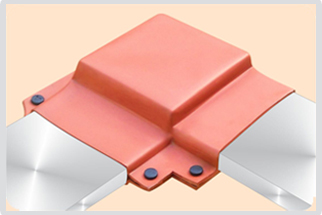

  • Busbar

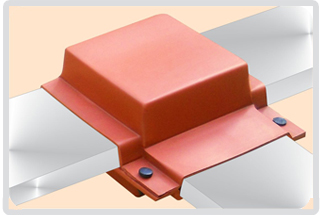

  • Bus-Bar

Savings in Switchgear Component Cost > Investment in Busboot

Busboot - Polyolefin is flexible electrical insulating boot / shroud for busbar and switchgear connections upto 36KV. These pliable boots can be installed, removed or replaced in few minutes. Made from high quality Cross-linked Polyolefin material to provide excellent electrical insulation and to withstand higher operating temperature continuously

It provides reduction in air clearance, which helps designing compact panels; thereby reduces the material costs by saving in busbar lengths, sheet metal components, etc.

-: FEATURES & BENIFITS :-
boot
  • Reduces busbar clearance.
  • high dielectric strength as compare to busboot-vinyl..
  • halogen free, flame retardant.
  • suitable for insulationg busbar joint works applications ( tees, elbow, etc.)
  • easy to install or remove as often as required.
  • complete with fasteners.
  • highly resistant to uv rays and ozone. good for any outdoor or indoor applications.
  • suitable for any shapes or connections.
  • prevents busbar from chemical corrosion effected by strong acid, aikali, salt, etc.

Technical Qualification Report : QR 1031

Selection Chat
  • Voltage
  • Thikness (min.)
  • 12.0 KV
  • 1.0 mm
  • 18.0 KV
  • 1.4 mm
  • 24.0 KV
  • 1.8 mm
  • 36.0 KV
  • 2.5 mm
TECHNICAL SPECIFICATION
  • PROPERTIES
  • VALUE
  • STANDARD
  • Physical
  •
  •
  • Tensile Strength
  • 12 N/mm2 (MPA)(min.)
  • ASTM D638
  • Ultimate Elongation
  • 300% (Min.)
  • ASTM D638
  • Water Absorption
  • 0.5% (max.)
  • ASTM D570
  • Hardness
  • 45 ± 10 Shore D
  • ASTM D2240
  • Thermal
  •
  •
  • Accelerated ageing
  • Pass
  • ASTM D2671
  • Tensile Strength
  • 10 N/mm2(Mpa) (min.)
  • ASTM D 638
  • Ultimate Elongation
  • 250% (Min.)
  • ASTM D 638
  • Low temperature Flexibility (-40oC for 4 Hrs.)
  • No Cracking
  • ASTM D2671
  • Heat Shock (250°C for 30 Min.)
  • No Cracking or flowing
  • ESI 09-11
  • Shrink Temperature
  • 125°C
  • IEC 216
  • Continuous Temperature limit
  • -40°C to +100°C
  • IEC 216
  • Electrical
  •
  •
  • Dielectric Strength
  • 22 KV/mm. (Min.)
  • ASTM D149
  • Volume Resistivity
  • 1 x 1014 Ohm.cm(min.)
  • ASTM D257
  • Dielectric Constant
  • 5 (Max.)
  • ASTM D150
  • Resistant to track & erosion
  • No Tracking, erosion or flame failure up to 3.25 KV for 20 min.
  • ASTM D2303
