Cable Joints - GXSS - 1236 - Series - Heat Shrinkable Straight Through Joints Suitable for Single Core XLPE/EPR/PVC Insulated Cables for upto 36kv
Semi Conductive Cable Breakout

Descriptions : GXSS/1236-Series kits are Heat Shrinkable Straight Through Jointing kits designed for single core extruded dielectric, shielded, armoured & unarmoured cables upto 36kV rated voltage (12kV, 15-24kV & 36kV usage).

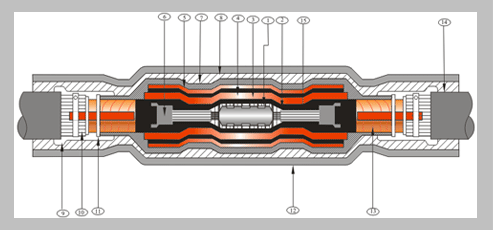

BILL OF MATERIAL STD. PACKING KIT ( + )
  • Cable Components
  • Kit Components
  • Installation aids & Accessories (Part of std. kits)
  • Cable Components
  • No
  • Descriptions
  • 14.
  • Outer Sheath
  • 13.
  • Copper Screen
  • 10.
  • Armour
  • 15.
  • XPLE Insulation
  • Kit Components
  •
  • No
  • Descriptions
  • Qty .
  • 1
  • lnline Connection Ferrule
  • 1 No.
  • 2
  • Heat Shrinkable Stress
  •
  •
  • Control Mastic For Ferrule Rigion
  •
  •
  • 12 kV
  • 2 Nos
  •
  • 24 kV
  • 1 No.
  •
  • 36 kV
  • 4 Nos
  • 3
  • Heat Shrinkable Stress control Tubing
  • 1 Nos
  • 4
  • H. S. Insulating Tubing
  •
  •
  • 12 kV
  • 1 No
  •
  • 24 kV
  • 1 No
  •
  • 36 kV
  • 2 nos
  • 5
  • H. S. Dual Wall Tubing
  • 1 No
  • 6
  • Stress Control Mastic
  • 1 No
  • 7
  • Copper Woven Flexible Mesh Tape
  • 1 Roll.
  • 8
  • G. I. Mesh
  • 1 Roll.
  • 9
  • Red Insulating Mastic Tape
  •
  •
  • 12 kV
  • 1 No
  •
  • 24 kV
  • 2 Nos
  •
  • 36 kV
  • 2 Nos
  • 10
  • Spring Clamp/Solder Flux
  • 2 Nos. /1Set
  • 11
  • H. S. Outer Jacketing Sleeve
  • 1 No
  • Installation aids & Accessories (Part of std. Kits)
  •
  • No
  • Descriptions
  • Qty .
  • 1
  • Copper Binding Wire
  • 1Roll.
  • 2
  • Aloxite Emery Tape
  • 1 No.
  • 3
  • Silicon Grease
  • 2 Nos.
  • 4
  • Cleaning Tissue
  • 2 Nos.
  • 5
  • Mopping Cloth
  • 1No.
  • 6
  • Installation Instruction Manual
  • 1No.
Electrical Performance
  • Tests
  • 12 kv System (6.6/6.6 KV,6.35/11KV)
  • 15-24kV System (8.7/15KV,11/11KV,12.7/22KV)
  • 36kV (19/33KV)
  • A. C. Dry Withstand voltage
  • 35KV/1 minute
  • 50KV/1 Minute
  • 75KV/1 Minute
  • D. C. Withstand 30 Minute
  • 48 KV
  • 96 KV
  • 144 KV
  • Lightening Impulse withstand Voltage
  • 75 KV(min)
  • 125 KV
  • 170 KV
  • Partial Discharge
  • 12.7 kV < 5 Pc
  • 25 Kv < 5 Pc
  • 38 Kv < 5 Pc
Ordering Informations
  • 12 KV System
  • 15 - 24 KV System
  • 36 KV System
  • Cable size (sq. mm)
  • Kit Code
  • Cable size (sq. mm)
  • Kit Code
  • Cable size (sq. mm)
  • Kit Code
  • 16-50
  • GXSS-11
  • 16-50
  • GXSS-21
  • 25-50
  • GXSS-31
  • 70-120
  • GXSS-12
  • 70-120
  • GXSS-22
  • 70-185
  • GXSS-32
  • 150-300
  • GXS-13
  • 150-300
  • GXS-23
  • 240-500
  • GXS-33
  • 400-630
  • GXS-14
  • 400-630
  • GXS-24
  • 630-800
  • GXS-34
  • 800-1000
  • GXS-15
  • 800-1000
  • GXS-25
  • 1000
  • GXSS-35
