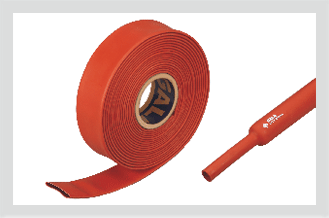

Non Tracking tube - INSULTUBE non tracking


	Heat Shrink Non Tracking tubes are used in Medium Voltage cable joints and terminations upto 36 KV. The tubes are produced from high quality non tracking cross linked polyolefin material that offers exceptional insulation and long term service reliability. General Properties Excellent anti-tracking performance and erosion resistance. Halogen free, flame retardant. Good weather / UV resistance. High resistance to chemical, solvent, corrosion and fungus. Customised dimension, thickness, length & colour available on request.

Technical Qualification Report : QR 1021

	SELECTION CHART

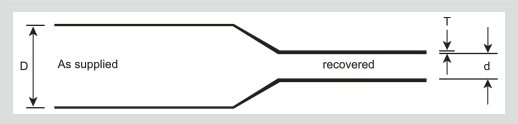

	All dimensions are in mm

code	D min (mm)	d max (mm)	T±10% (mm)	Spool length (mtr)
GAT 25/8	25	8	2.5	30
GAT 65/25	65	25	3.0	15
GAT 75/28	75	28	3.0	15
GAT 100/38	100	38	3.0	15

Selection Chart (Heavy Wall)

code	D min (mm)	d max (mm)	T±10% (mm)	Spool length (mtr)
GAT(HW) 25/8	25	8	5	1.5
GAT(HW) 35/12	35	12	5	1.5
GAT(HW) 55/18	55	18	5	1.5
GAT(HW) 65/25	65	25	5	1.5
GAT(HW) 85/30	85	30	5	1.5
GAT(HW) 100/38	100	38	5	1.5
GAT(HW) 120/45	120	45	5	1.5
GAT(HW) 140/50	140	50	5	1.5

TECHNICAL SPECIFICATION

PROPERTIES	VALUE	STANDARD
Physical
Tensile Strength	10 N/mm²(MPA)(min.)	ASTM D638
Ultimate Elongation	350% (Min.)	ASTM D638
Longitudinal Change	-10%(Max)	ASTM D2671
Hardness	45 ± 10 Shore D	ASTM D2240
Water Absorption	0.5 % (max.)	ASTM D570
Thermal
Accelerated Ageing	(120^oC for 500 Hrs)	ASTM D2671
Tensile Strength	8 N/mm² (Mpa) (min.)	ASTM D 638
Ultimate Elongation	250 % (Min.)	ASTM D 638
Low temperature Flexibility (-40⁰C for 4 hrs.)	No Cracking	ASTM D2671
Heat Shock (250^oC for 30 Min.)	No Cracking or flowing	ESI 09-11
Shrink Temperature	125^oC	IEC 216
Continuous Temperature Limit	-40⁰C to +100⁰C	IEC 216
Electrical
Dielectric Strength	15 KV/mm. (Min.)	ASTM D149
Volume Resistivity	1 x 10¹⁴ Ohm.cm(min.)	ASTM D257
Dielectric Constant	5 (Max.)	ASTM D150
Resistant to track & erosion	No Tracking, erosion or flame failure upto 3.25 KV for 20 min.	ASTM D2303
