Semi Conductivecable Breakout - INSULCORE Sami Conductive
Semi Conductive Cable Breakout

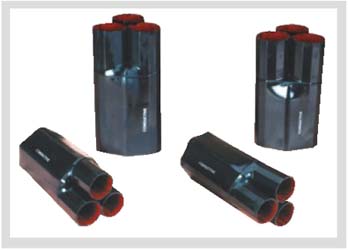

Insulcore Semi Conductive Cable Breakout are used for PILC belted cable to seal the crutch area as well as to provide individual screening to each core.

The breakouts are made from high quality cross linked semi conductive polyolefin material. The breakouts are internally coated with water resistant red mastic.

Meets IP 68 (ingress Protection)

SELECTION CHART

All dimensions are in mm

  • Code
  • No. of Core
  • D
  • d
  • L
  • l
  • Tb
  • Tc
  •
  •
  • s
  • f
  • s
  • f
  • s
  • f
  • f
  • f
  •
  •
  •
  •
  • min
  • max
  • min.
  • max.
  • min.
  • max.
  • min
  • max
  • +/-10%
  • +/-10%
  • GCB-0820
  • 3
  • 55
  • 20
  • 25
  • 8
  • 160
  • 188
  • 52
  • 62
  • 3.7
  • 2.8
  • GCB-1330
  • 3
  • 80
  • 30
  • 36
  • 13
  • 185
  • 215
  • 60
  • 75
  • 3.9
  • 3.1
  • GCB-1330A
  • 3
  • 95
  • 30
  • 39
  • 13
  • 180
  • 215
  • 60
  • 75
  • 3.9
  • 3.1
  • GCB 2145
  • 3
  • 110
  • 45
  • 55
  • 20
  • 190
  • 230
  • 65
  • 90
  • 4.3
  • 3.0
  • GCB-2145A
  • 3
  • 125
  • 45
  • 60
  • 21
  • 175
  • 230
  • 60
  • 90
  • 4.3
  • 3.0
  • GCB-2755
  • 3
  • 140
  • 56
  • 70
  • 28
  • 200
  • 250
  • 75
  • 90
  • 4.6
  • 3.4
  • GCB-2755A
  • 3
  • 170
  • 56
  • 70
  • 29
  • 190
  • 255
  • 70
  • 90
  • 4.6
  • 3.4

D,d : Internal Diameter ; s : as supplied ; f : after free recovery ; Tb,Tc : Thickness of body & core

TECHNICAL SPECIFICATION
  • PROPERTIES
  • VALUE
  • STANDARD
  • Physical
  •
  •
  • Tensile Strength
  • 12 N/mm2 (MPA)(min.)
  • ASTM D638
  • Ultimate Elongation
  • 350% (Min.)
  • ASTM D638
  • Density
  • 1.10 + 0.2 gm/cm3
  • ASTM D792
  • Hardness
  • 45 + 10 Shore D
  • ASTM D2240
  • Water Absorption
  • 0.5 % (max.)
  • ASTM D570
  • Thermal
  •
  •
  • Accelerated Ageing
  • (120oC for 500 Hrs)
  • ASTM D2671
  • Tensile Strength
  • 11 N/mm2 (Mpa) (min.)
  • ASTM D 638
  • Ultimate Elongation
  • 300%(Min.)
  • ASTM D638
  • Low temperature Flexibility (-40oC for 4 Hrs.)
  • No Cracking
  • ASTM D2671
  • Heat Shock (250oC for 30 Min.)
  • No Cracking or flowing
  • ESI 09-11
  • Shrink Temperature
  • 125oC
  • IEC 216
  • Continuous Temperature limit
  • -40oC to + 110oC
  • IEC 216
  • Electrical
  •
  •
  • Volume Resistivity
  • 1 x 107 Ohm.cm(min.)
  • ASTM D257
