Solder Sleeve
solder sleeve
MATERIALS

1.INSULATION SLEEVE: Heat Shrinkable ,radiation cross-linked modified polyfin.

2.SOLDER PREFORM WITH FLUX:
SOLDER: As per ANSI/J-STD-006.
SOLDER: As per ANSI/J-STD-006.As per ANSI/J-STD-006.

3.MELTABLE SEALING RING: Thermally stabilized thermoplastic.(size 3,5,6,7,9,11); natural(size 13)

4.MELTABLE SEALING RING: Thermally stabilized thermoplastic.(size 3,5,7,11); gray (size 6);natural(size 9,13)

APPLICATION
  • These controlled soldering devices are designed for termination of a bare or tin-plated copper shield on cable having an insulation rated for at least +85oC,meeting the dimensional criteria listed in the table above.
  • Temperature range : -55o C to +125o C
  • When installed properly ,it will meet the requirments for best results ,prepare the cable as shown:

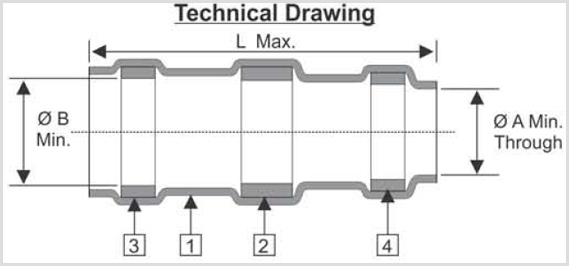

Technical Drawing

solder sleeve dra1
  • solder sleeve dra2

    GSC Series Tubes

  • Bus tube

    GSC Series Tubes

  • Product Name
  • Product Dimensions
  • Prepared Cable Directions
  •
  • ØA
  • ØB
  • ØL
  • ØD
  • ØE
  • ØF
  • ØG
  • H
  • J
  •
  • min
  • min
  • max
  • max
  • min
  • min
  • max
  •
  •
  • GSS-3
  • 2.50 [0.098]
  • 3.00 [0.118]
  • 24.5 [0.965]
  • 3.00 [0.118]
  • 1.50 [0.060]
  • 1.00 [0.040]
  • 2.50 [0.098]
  • 6.0±0.5 [0.236±0.020]
  • 7.0±0.5 [0.726±0.020]
  • GSS-5
  • 4.30 [0.170]
  • 4.80 [0.189]
  • 29.3 [1.154]
  • 4.80 [0.189]
  • 2.00 [0.079]
  • 1.50 [0.059]
  • 4.30 [0.170]
  • 8.0±0.5 [0.315±0.020]
  • 9.0±0.5 [0.354±0.020]
  • GSS-6
  • 6.00 [0.236]
  • 6.70 [0.264]
  • 32.00 [1.260]
  • 6.70 [0.264]
  • 3.30 [0.130]
  • 2.80 [0.110]
  • 6.00 [0.236]
  • 9.0±0.5 [0.354±0.020]
  • 10.0±0.5 [0.394±0.020]
  • GSS-7
  • 6.80 [0.268]
  • 7.30 [0.287]
  • 32.50 [1.280]
  • 7.30 [0.287]
  • 3.30 [0.130]
  • 2.80 [0.110]
  • 6.80 [0.268]
  • 10.0±1.0 [0.394±0.040]
  • 11.0±1.0 [0.433±0.040]
  • GSS-9
  • 8.70 [0.343]
  • 9.20 [0.362]
  • 35.50 [1.398]
  • 9.20 [0.362]
  • 4.50 [0.177]
  • 4.00 [0.157]
  • 8.70 [0.0343]
  • 11.0±1.0 [0.433±0.040]
  • 12.0±1.0 [0.472±0.040]
  • GSS-11
  • 10.80 [0.425]
  • 11.50 [0.453]
  • 35.50 [1.398}
  • 11.50 [0.453]
  • 4.50 [0.177}
  • 4.00 [0.157]
  • 10.80 [0.425]
  • 12.0±1.0 [0.472±0.040]
  • 13.0±1.0 [0.512±0.040]
  • GSS-13
  • 13.00 [0.512]
  • 15.10 [0.594]
  • 45.50 [1.791]
  • 15.10 [0.594]
  • 7.00 [0.276]
  • 6.50 [0.256]
  • 13.00 [0.512]
  • 16.0±1.0 [0.630±0.040]
  • 17.0±1.0 [0.670±0.040]
