Terminal Insulation Cover - TERMICOVER |
|
|
| |
|
| |
| |
Terminal Insulation Cover is made from high quality flexible PVC (Polyvinyl Chloride) material.
Protecting Insulating covers for straight or flat-type terminals.
Recesses on the tab shoulders ensure that the tabs stay firmly in place.
The sleeves prevents entry of dust from the cable end.
Available in customs size, shape & colours. |
|
|
| |
 |
| |

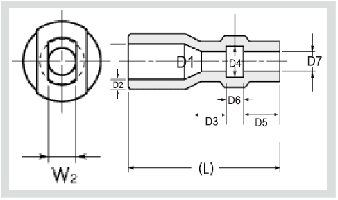

SELECTION CHART |
|
|
| TYPE |
D1
mm |
D2
mm |
D3
mm |
D4
mm |
D5
mm |
D6
mm |
D7
mm |
L |
| GTIC-1 |
6 |
2.8 |
4 |
3 |
8 |
3.5 |
2.5 |
25 |
| GTIC-2 |
8 |
3.9 |
5 |
5 |
11 |
5 |
3.9 |
30 |
| GTIC-3 |
9 |
4 |
5.2 |
6.2 |
11 |
3.8 |
5.5 |
32 |
|
|
Test Description |
Recorded Value |
Test Method |
| Dielectric Strength |
7 KV / mm. (min.) |
ASTM D149 |
| Tensile strength |
12 N/mm2 (min.) |
ASTM D638 |
| Elongation |
350% (min.) |
ASTM D638 |
| Density |
1.23 gm/cm3 |
ASTM D792 |
| hardness |
65 ± 5 shore A |
ASTM D2240 |
| Continuous Operating Temp. |
-20OC to 115OC |
IEC 216 |
| Flammability |
Self Extinguishing |
ASTM D876 |
|
