Heat Shrinkable Joints & Terminations

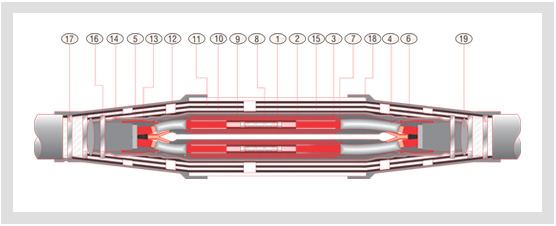

Cable Joints - GPS/2436 - Series - Heat Shrinkable Straight Through Joints Suitable for upto 33kv 3 Core Screened PILC Cables (24 kv & 36 kv Series)
  • No
  • Descriptions
  • No
  • Descriptions
  • 1
  • Inline connector
  • 11
  • Metallic Protection Cage
  • 2
  • Stress Control Mastic
  • 12
  • Adhesive Lined Side Sleeve
  • 3
  • Oil Barrier Sleeve
  • 13
  • Insulating Wedge
  • 4
  • Conducting Tube (Black)
  • 14
  • Copper Mesh Tape
  • 5
  • Void Foiler
  • 15
  • Earth Lead
  • 6
  • Conducting Breakout
  • 16
  • Constant Force Spring Clamp
  • 7
  • Grey Mastic
  • 17
  • Worm Drive Clamp
  • 8
  • Stress Control Tubing (Black)
  • 18
  • Outer Jacketing Sleeve
  • 9
  • Insulating Tube (Red)
  • 19
  • Earthing Plumb
  • 10
  • Dual Wall Tubing (Black+Red)
  •
  •
Electrical Performance
  • Tests
  • 15-24kV System (8.7/15KV,11/11KV,12.7/22KV)
  • 36kV (19/33KV)
  • A.C. Dry Withstand Voltage
  • 50kV / 1 Minute
  • 75kV / 1Minute
  • D.C. Voltage Withstand Test
  • 96kV / 30 Minutes
  • 144kv / 3 Minutes
  • Lightening Impulse Withstand Voltage
  • 75 KV
  • 170k
Ordering Informations
  • Cable Size (sq.mm.)
  • Kit Code 24kV
  • Cable Size (sq.mm.)
  • Kit Code 36kV
  • 25-50
  • GPS-21
  • 35-70
  • GPS-31
  • 70-120
  • GPS-22
  • 95-150
  • GPS-32
  • 150-240
  • GPS-23
  • 185-300
  • GPS-33
  • 300-500
  • GPS-24
  • 400--
  • GPS-34

    NOTE

  • All kits are supplied with full kit contents for making a straight through joint.
