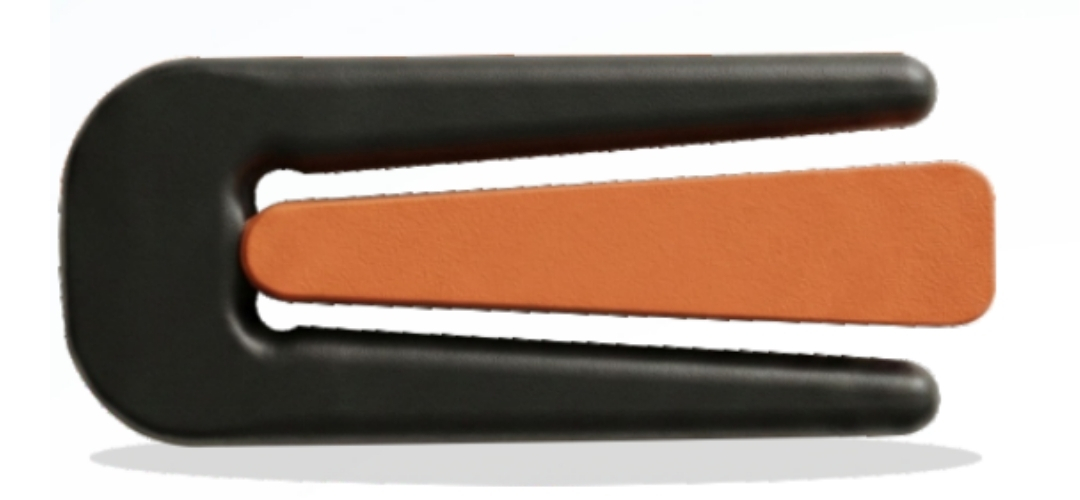

Branch Off Clip

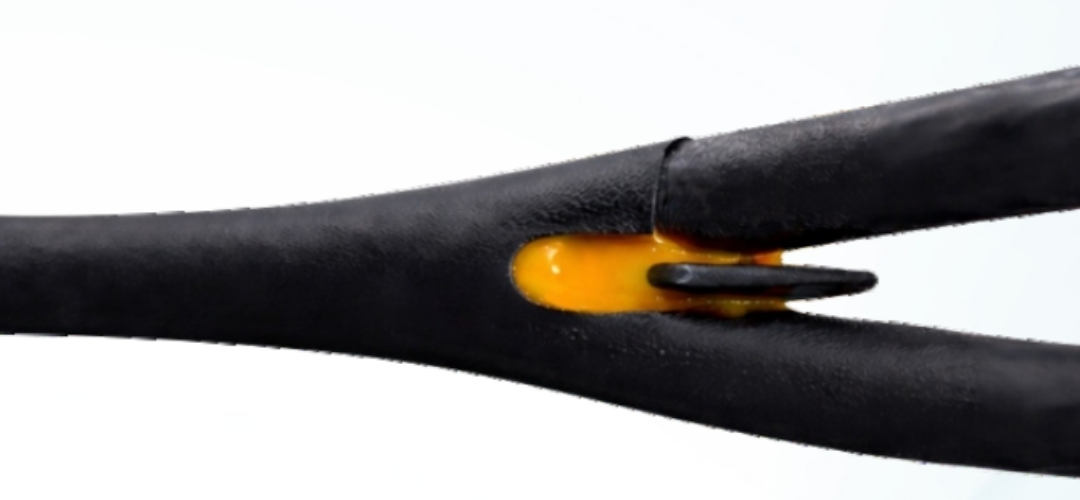

Ensure reliable cable branching with the GALA Branch Off Clip . Essential for telecom jointing, this clip creates a perfect seal between dual cable cores. Its high-quality hot melt adhesive lining melts simultaneously with the outer sleeve shrinkage, providing a robust and moisture-resistant hold. It is used to separate 2 cores of the cable that are coming out of the joint. Its outer surface is covered with a hot melt adhesive layer.

Technical Specification*
PROPERTIES VALUE STANDARD
Tensile Strength 2 N/mm 2(Mpa) (min.) ASTM D638
Ultimate Elongation 700 % (min) ASTM D638
Density 0.9 gm./cm 3 (max) ASTM D792
Hardness 75 ± 5 Shore A ASTM D2240
Dielectric Strength 12 kV/mm. (min) ASTM D149
Volume Resistivity 1 x 1014 ohm. (min) ASTM D257
Dielectric Constant 5 (max) ASTM D150

All dimesions are in mm

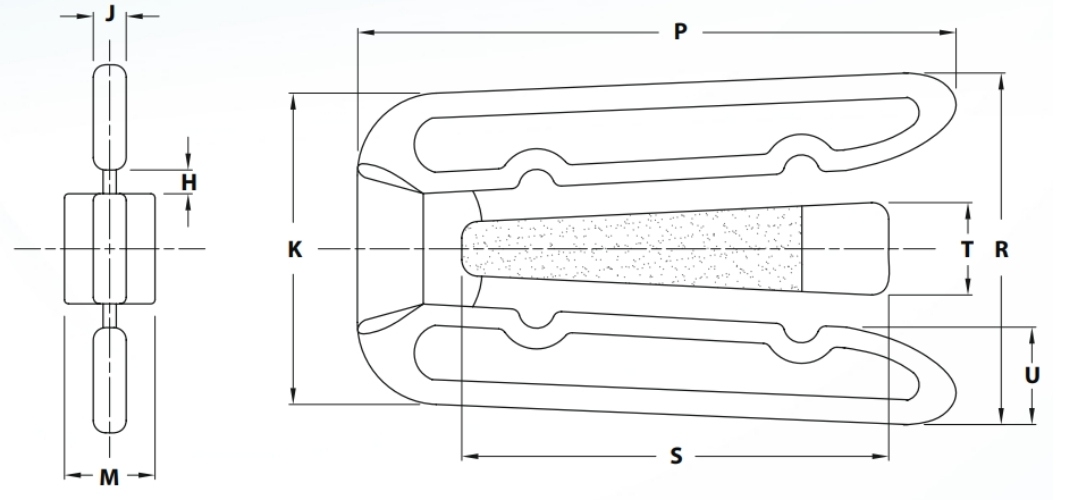

Selection Chart
Gala Code H J M P R S T U K
GBOC 1 2.5 5 12 64 28 55 13 4.5 28
GBOC 2 3.0 6 12 110 60 85 15.5 18.5 54
GBOC 3 3.0 6 13 125 85 103 17 30 79

*Dimensional tolerance: ± for all dimensions
