PRE-INSULATED PIPE SEALING CAP for Single & Double Outlet

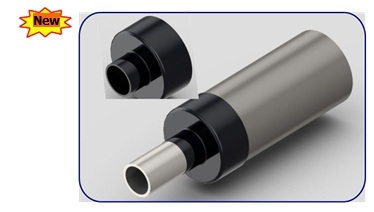

SINGLE
PRE-INSULATED PIPE SEALING CAP

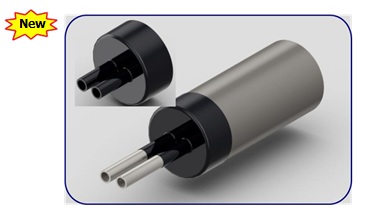

DOUBLE
PRE-INSULATED PIPE SEALING CAP
Pre-insulated Pipe Sealing Cap is Heat Shrink Cap with Hot Melt Adhesive / Mastic, used to seal and to protect the joints of pipelines and other substrates . The caps are manufactured from high quality Cross-linked Polyolefin material.
Technical Specifications:
All dimensions are in mm
- Properties
- Value
- Standard
- Tensile Strength
- 18 N/mm2 (Mpa) (min.)
- ASTM D638
- Ultimate Elongation
- 350 % (min.)
- ASTM D638
- Water Absorption
- 0.1 % (max.)
- ASTM D570
- Adhesive Peel Strength
- 100 N/25mm (min.)
- ASTM D2671
- Accelerated ageing
- (120°C for 500 hrs)
- ASTM D2671
- a. Tensile Strength
- 11 N/mm2 (Mpa) (min.)
- ASTM D638
- b. Ultimate Elongation
- 300 % (min.)
- ASTM D638
- Heat Shock (250°C for 30 min.)
- No cracking or flowing
- ESI 09-11
- Continuous Temperature Limit
- -40 to +1000C
- IEC 216
- Dielectric Strength
- 12 KV/mm.(min)
- ASTM D149
- Volume Resistivity
- 1 x 1014 Ohm.cm (min)
- ASTM D257
Features & Benefits:
- Excellent insulation end seals and provide maximum moisture protection.
- Provides watertight seal and prevents water access to the exposed insulation at the weld joint area.
- Provides corrosion protection to pipeline joints and other substrates.
- Hot melt adhesive lining provides 100% environ--mental sealing against weathering, moisture, contamination and adverse environmental conditions according to IP 68.
- Can be factory installed, once installed the Cap protects the pre-insulated pipe during transportation and storage.
- Reduces repairing cost.
- Resistance to UV rays & Ozone.
- Easy to install.
SELECTION CHART
All dimensions are in mm
- Code
- Ds Min.
- df Max.
- ds Min.
- df Max.
- Ls Min.
- Lf Min.
- ls Min.
- lf Min.
- Tb ±10%
- Tc ±10%
- AL Min.
- GPPC1-1030
- 60
- 30
- 45
- 10
- 120
- 125
- 50
- 50
- 3.5
- 4.5
- 30
- GPPC1-2460-1
- 85
- 60
- 42
- 24
- 155
- 195
- 85
- 108
- 3.3
- 3.3
- 30
- GPPC1-2460-2
- 105
- 61
- 45
- 24
- 155
- 195
- 85
- 108
- 3.3
- 3.3
- 30
- GPPC1-2460-3
- 125
- 61
- 65
- 25
- 150
- 195
- 75
- 108
- 3.3
- 3.3
- 30
- GPPC1-2460-4
- 140
- 61
- 76
- 25
- 140
- 195
- 70
- 108
- 3.3
- 3.3
- 30
- GPPC1-4090-1
- 156
- 90
- 95
- 40
- 150
- 190
- 60
- 118
- 4.0
- 4.5
- 30
- GPPC1-4090-2
- 178
- 90
- 105
- 41
- 150
- 190
- 55
- 118
- 4.0
- 4.5
- 30
- GPPC1-2475-1
- 115
- 75
- 55
- 24
- 95
- 115
- 35
- 40
- 2.5
- 2.5
- 30
- GPPC1-2475-2
- 148
- 75
- 70
- 25
- 80
- 115
- 30
- 40
- 2.5
- 2.5
- 30
- GPPC1-2475-3
- 160
- 75
- 75
- 26
- 80
- 115
- 30
- 40
- 2.5
- 2.5
- 30
- GPPC1-3090
- 170
- 90
- 105
- 31
- 125
- 140
- 40
- 55
- 2.5
- 3.0
- 30

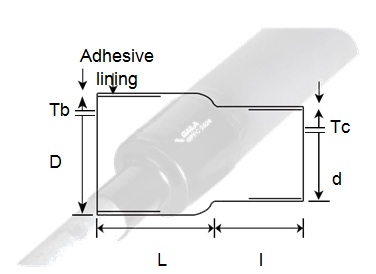

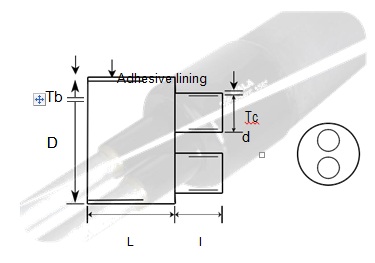

D, d: Internal Diameter; S: As Supplied; f: After Free Recovery; L, l: Length
Tb, Tc: Thickness After Free Recovery, AL: Adhesive Length
All dimensions are in mm.
