Cable Joints - GTJ/1112kv Series - Branch Joint, Transition Joint, PILC Joint, Cable Accessories Suitable for 3 Core XLPE/PILC Cables upto 12kV
Semi Conductive Cable Breakout

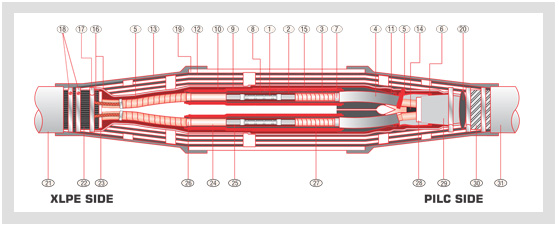

Descriptions : GTJ / 1112 - Series are designed for connecting Branch Joint, Transition Joint, PILC Joint, Cable Accessories, PILCE cable to XLPE cable for upto 12kV system.

BILL OF MATERIAL STD. PACKING KIT ( + )
  • Cable Components
  • Kit Components
  • Installation aids & Accessories (Part of std. kits)
  • Cable Components
  • No
  • Descriptions
  • 21.
  • PVC Outer Sheath.
  • 22.
  • Armour
  • 23.
  • Inner Sheath.
  • 24.
  • XLPE Insulations
  • 25.
  • Conductor
  • 26.
  • Semi con Layer.
  • 27.
  • Paper Insulation Cover.
  • 28.
  • Paper Belting (Inner Sheath).
  • 29.
  • Lead Sheath.
  • 30.
  • Steel Armour.
  • 31.
  • Jute Impregnated Outer Sheath.
  • Kit Components
  •
  • No
  • Descriptions
  • Qty .
  • 1
  • Inline Connerctor (Barrier Type)
  • 3 Nos.
  • 2
  • Stress Relif Mastic
  • 6 Nos.
  • 3
  • H. S. Oil Barrier Sleeve
  • 3 Nos.
  • 4
  • H. S. Conducting Tubing
  • 3 Nos
  • 5
  • High Permittivity Void Filler
  • 1 No.
  • 6
  • H. S. Conducting Breakout
  • 1 No.
  • 7
  • Stress Relief Mastic 6 Pcs. (For S. C.) Cut end of XLPE conducting Tubing
  •
  • 8
  • H. S. Stress Control Tubing
  • 3 Nos.
  • 9
  • H. S. Insulation Tubings.
  • 3 Nos.
  • 10
  • H. S. Screened Tubing (Duall Wall Red + conducting) (Alternatively seperte Insulation & Conducting Tubings)
  • 3 Nos.
  • 11
  • H. S. Compression Tubings
  • 3 Nos.
  • 12
  • Metallic Protection case/Warparound Joint Case (Alternatively G I Mesh Tape for mechanical protection a New concept.)
  • 1 No
  • 13
  • H. S. Adhesive Lined Side Sleeve
  • 2 Nos.
  • 14
  • Insulating wedge EPDM
  • 1 No.
  • 15
  • Tinned Copper Mesh Tape
  • 3 Nos.
  • 16
  • Tinned Copper Earth Braid
  • 1 No.
  • 17
  • Constant Face Spring Clamp/(Solder+Flux).
  • 1 Set
  • 18
  • Jubilee Clamps.
  • 6 Nos.
  • 19
  • H. S. Outer Jacking Tubing (Centre)
  • 1 No.
  • 20
  • Plumbing Metal
  • 1 Set.
  • Installation aids & Accessories (Part of std. Kits)
  •
  • No
  • Descriptions
  • Qty .
  • 1
  • Nylon String for Cutting XLPE Inulation
  • 1 No.
  • 2
  • Aloxite Emery Tape
  • 3 Pcs.
  • 3
  • Mopping Cloth
  • 1 Pc.
  • 4
  • Silicon Grease
  • 3 Pcs.
  • 5
  • Cleaning Tissue
  • 6 Pcs.
  • 6
  • Mastic Sealing Tape
  • 2 Nos.
  • 7
  • Copper Binding Wire
  • 1 Roll.
  • 8
  • Instruction Manual
  • 1 No.
Electrical Performance
  • Tests
  • Requirement
  • Typical Value
  • A.C. Withstand Voltage
  • 35kV / 1 Minute
  • Pass
  • D.C. Voltage Withstand Test
  • 48kV / 30 Minutes
  • Pass
  • Lightening Impulse Withstand Voltage
  • 75 KV
  • 95 KV
Ordering Informations
  • Cable Size (Sq. mm.)
  • Kit Code
  • 3x16-35
  • GTJ-11
  • 3x50-95
  • GTJ-12
  • 3x120-185
  • GTJ-13
  • 3x240-300
  • GTJ-14
  • 3x400-500
  • GTJ-15
  • 3x630
  • GTJ-17

    NOTE :

  • All Kits are supplied with full kit contents for making a Transition joint.
