630A  Deadbreak Elbow Connector
(GEB 15/630 or GEB 24/630)

Bus tubes

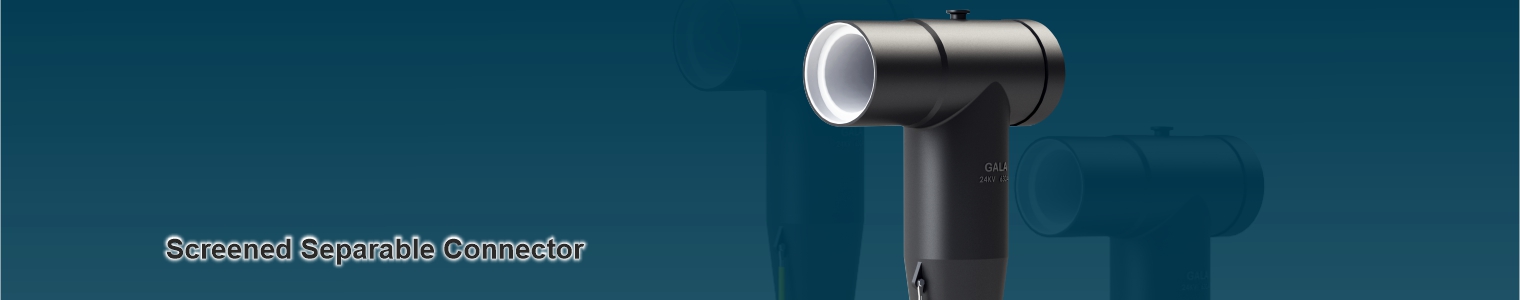

Gala Screened Separable Connectors are designed to connect single and three core polymeric cables to medium voltage switchgear and other equipment using bushings type "C" specified for 630A upto 24kV. Made of a highly modified EPDM rubber and protected by a touch proof outer conductive screen connected to earth

Supporting a wide application range, the design incorporates one body and stress cone adapters to cover all cross section from 25 to 300 sq. mm. All kits include high-performance multi range compression lugs matching the design of the design of the connector.

FEATURES & BENEFITS :-
  • Provides fully screened and submersible separable connection.
  • Mating with C - type bushings and plugs complying with EN 50180 & EN 50181
  • Compact design
  • 100% factory tested
  • Voltage class: 15kV, 24kV
  • Tested in compliance with IEC 60502.4
Bustube
Bustube
Technical Specification
  • Voltage Class
  • 15kV
  • 24kV
  • Continuous Current
  • 630A
  • 630A
  • Alliance Bushing
  • EN 50180 & 50181 Type C
  • EN 50180 & 50181 Type C
  • AC Withstand Voltage
  • 39kV for 5 min
  • 54kV for 5 min
  • Impulse Withstand Voltage (10 times for each polarity)
  • 95kV
  • 125kV
  • Partial Discharge at 1.73U0
  • ≤ 10pC
  • ≤ 10pC
  • Screen Resistance
  • ≤5000 Ω
  • ≤5000 Ω
  • Cable Cross-section
  • 25-500mm2
  • 25-400mm²
Ordering Informations
  • Characteristic
  • Rated Voltage
  • Diameter over Insulation (mm)
  • Cable Cross- section (mm²)
  • Material of Lug
  • Kit
  • Screened
  • 15:8.7/15kV
  • A: Ø14-Ø16
  • 01:25   02:35
  • C: Cu
  • 3: 3 Pcs / Kit
  • Tee Connector
  •
  • B: Ø16-Ø18
  • 03:50   04:70
  • A: Al
  • 1: 1 Pc / Kit
  •
  •
  • C: Ø17-Ø20
  • 05:95   06:120
  •
  •
  •
  •
  • D: Ø20-Ø23
  • 07:150 08:185
  •
  •
  • Screened
  •
  • E: Ø23-Ø26
  • 09:240 10:300
  •
  •
  • Rear Connector
  •
  • F: Ø26-Ø30
  • 11:400 12:500
  •
  •
  •
  •
  • G: Ø30-Ø33
  •
  •
  •
  •
  •
  • H: Ø33-Ø36
  •
  •
  •
  •
  •
  • I: Ø36-Ø39
  •
  •
  •
  •
  • 24:12/20kV
  • A: Ø18-Ø22
  • 01:25   02:35
  • C: Cu
  • 3: 3pcs/kit
  •
  •
  • B: Ø22-Ø25
  • 03:50   04:70
  • A: Al
  • 1: 1pc/kit
  •
  •
  • C: Ø25-Ø28
  • 05:95   06:120
  •
  •
  •
  •
  • D: Ø28-Ø32
  • 07:150 08:185
  •
  •
  •
  •
  • E: Ø32-Ø35
  • 09:240 10:300
  •
  •
  •
  •
  • F: Ø35-Ø38
  • 11:400
  •
  •
  •
  •
  • G: Ø38-Ø41
  •
  •
  •
Dimensional Specification
  • Cable Cross-section
  • 25-300 (mm²)
  • 400-500
  • Outer Diameter L (mm)
  • 25-300 (mm²)
  • 25-300 (mm²)
  • Length H (mm)
  • 242±5
  • 272±5

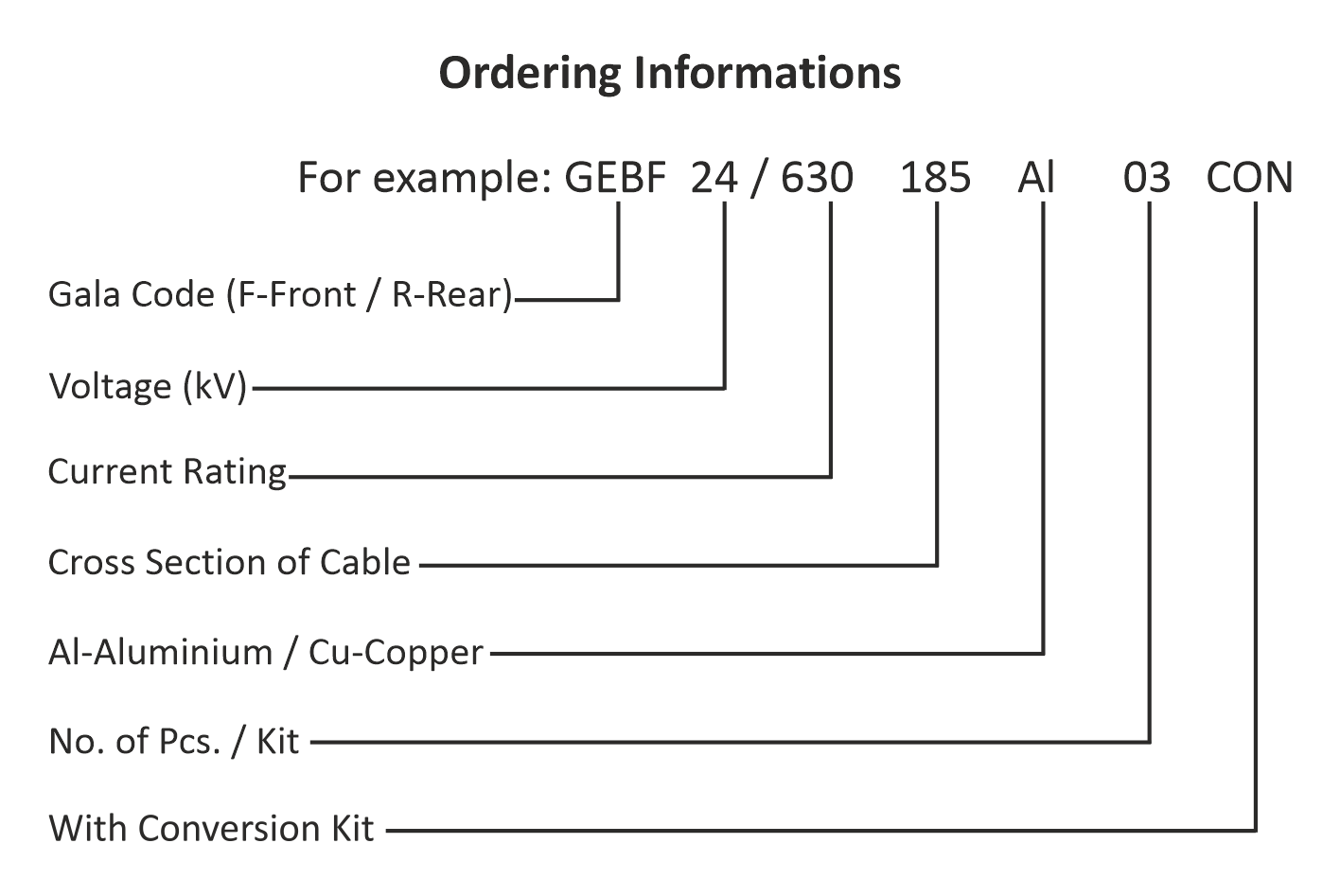

For example:

GEB  →    Gala Code

15    →    Voltage (kv)

630 →    Current Rating

A →    Dia. Over Insulation

02 →    Cross Section Area Of Cable

C →    C-copper / A-aluminium

3 →    3: 3 Pcs Kit / 1: 1 Pc Kit
