CATV - INSULTUBE Premium

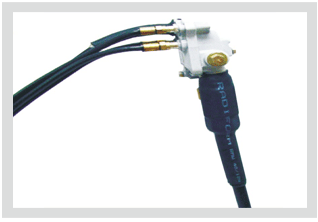

Insultube-Premium (GBT) is heat shrinkable tubing, designed specifically to meet the need of Broadband CATV industry. It provides mechanical protection and a reliable waterproof seal of cable connectors and tap terminations. It is easy to install and shrinks to follow the profile of the object to be protected.

it is used for insulating underground & aerial connections in CATV plant, CCTV connections and control cables splicing joints.

General Properties :

High shrink ratio.
Excellent machanical properties.
Hot melt adhesive provide perfect environmental seal on cable sheathe.
Excellent resistance to weathering. moisture, Contamination and adverse environmental conditions. Lightweight and Flexible.
Excellent resistance to UV rays, Ozone, chemicals & solvents.
Provides machanicals starain relief.
Easily Re- enterrable.
Also available in spools
Confirms to IEC 60684-3-247 standard.
Customised dimesion, thickness, length & colour available on request
Meets IP 68 (Ingress Protection)

SELECTION CHART

All dimensions in mm

Code	D Min. (mm)	d Max. (mm)	T±10% (mm)
GBT 12/4	12	4	2.0
GBT 17/6	17	6	2.0
GBT 27/8	27	8	2.5
GBT 30/10	30	10	2.5
GBT 40/12	40	12	2.5
GBT 50/16	50	16	2.5
GBT 60/20	60	20	2.5
GBT 70/22	70	22	2.5

TECHNICAL SPECIFICATION

PROPERTIES	VALUE	STANDARD
Physical
Tensile Strength	14 N/mm² (MPA)(min.)	ASTM D638
Ultimate Elongation	400% (Min.)	ASTM D638
Longitudinal Change	- 10% (Max.)	ASTM D2671
Water Absorption	0.5 % (max.)	ASTM D570
Thermal
Accelerated Ageing	(120^oC for 500 Hrs)	ASTM D2671
Tensile Strength	12 N/mm2 (Mpa) (min.)	ASTM D 638
Ultimate Elongation	300 % (Min.)	ASTM D 638
Low temperature Flexibility (-40^oC for 4 Hrs.)	No Cracking	ASTM D2671
Heat Shock (250^oC for 30 Min.)	No Cracking or flowing	ESI 09-11
Shrink Temperature	>90°C	IEC 216
Continuous Temperature limit	-55°C to + 110°C	IEC 216
Electrical
Dielectric Strength	15 KV/mm. (Min.)	ASTM D149
Volume Resistivity	1 x 10¹⁴ Ohm.cm(min.)	ASTM D257
Dielectric Constant	5 (Max.)	ASTM D150

.
